My Delta DJ-20 Restoration (Part 2)

I'm trying to remove the tables, but I just can't seem to figure out how to do it.
The tables have rods on which the arms for the parallelogram mechanism clamp onto.

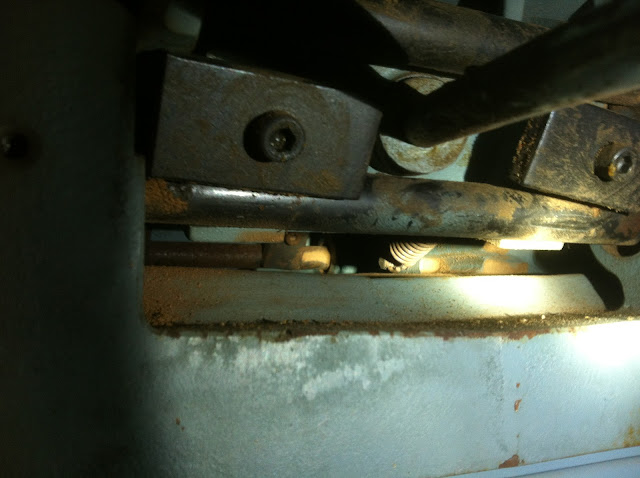

Here I have loosened the socket cap screws that clamp the black plates to the rod. (Plates rotated 90 degrees)

Its hard to see, but there is another set of socket cap screws way in the back. I can't figure out how to loosen those screws. And if I did, I'm not sure how I would but the tables back on.

Here is a spring that helps counter-act the weight of the tables for easy adjustment. If I remove it, I'm still not sure how I can put the springs back.
